Due to the tense situation on the textile market, we have decided to discontinue sales, further development and service for the weaving software WeaveStruct with the OpTex modules, CalcMaster and WeaveMaster on December 31, 2020.
WeaveStruct
Product development, reed- and fabric calculations, presentation of the structures, with integrated pulp, blending and yarn database
Working place
Combined presentation of several working windows: data input, binding development, structure display with data output
Processing examples
Binding development of a 2-layer fabric
Determining the flexibility degree of yarns
Presentation and data output of a 3-layer fabric
Binding development of a 4-layer fabric
Areas of weaving-in with different tension force condition
Development database
Binding development by cross sectional view
Calculations of sample- and trial warps
Fiber stock database
Mixing database with analysis
Yarn database
Fancy yarns
Stress-strain behavior of single and plied yarns
Stress-strain behavior of fabrics
WeaveMaster
CAD software for automated development of bonds, harness drawing-in and pattern cards with fabric simulations
Working place
Worksheet for automated or individual binding development, including harness frame drawing-in and pattern draft
Patterning examples
Pattern card of a patterned panama weave
Bracketed pattern card showing over denting
Fabric with warp- and weft floats

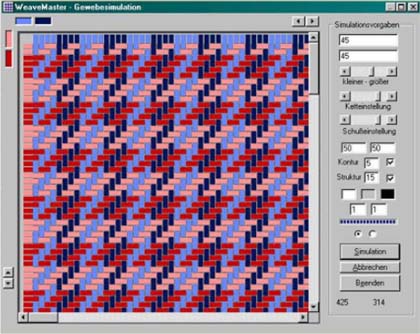

Fabric- and sample simulation
Presentation of leno bindings
Bindings developed after the four-set method from the same original motive

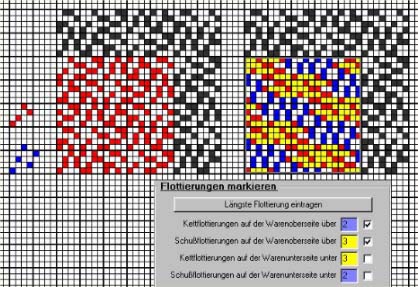

Presentation of marked floats at a crepe binding

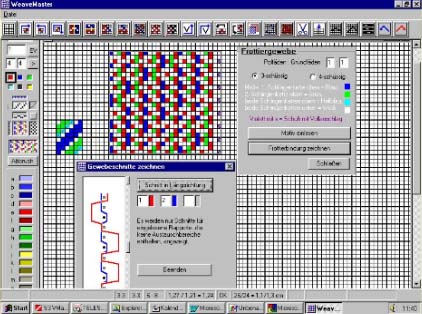

Terry binding with sectional view
opTex Weaving tension
Thread loads in the processing of yarns as warp and weft
Processing examples
Sheding and warp tension
Input and presentation of shed data
Warp tension (up to 3 together working warp beams)
Weft tension (rapier weft insertion)
opTex Shed geometry
Surface and deep structures at fabrics, relative weave densities
Processing examples
Presentation of fabric structure in relation to yarn type and thread densities
Fabric structure by binding and yarn type
opTex Weave densities
Alternative weave densities calculations
Processing examples
Alternative determination of the relative weaving density
Relative fabric densities at leno bindings
opTex Fiber contents
Summary of all pulp shares in the gray fabric
Processing example
Automatic determination of the fiber material content in the gray fabric
CalcMaster
Simultaneous calculation in connection with product development
Processing examples
Calculation overview with automated data input
Spreadsheet setup data
